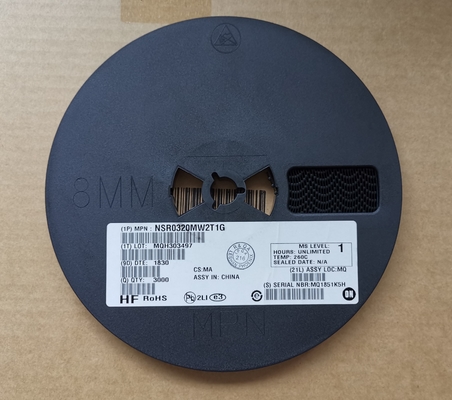

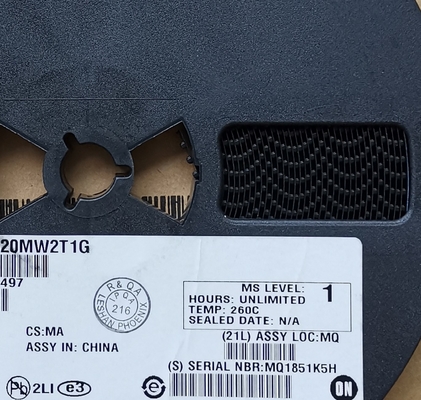

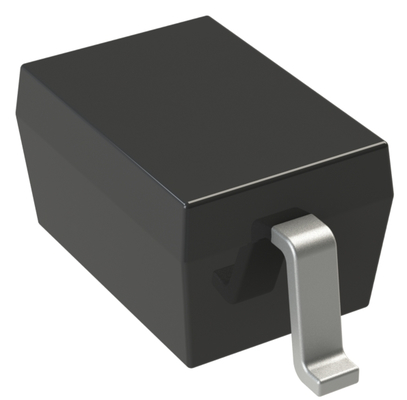

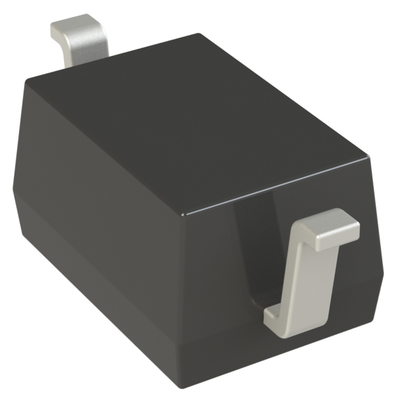

NSR0320MW2T1G 30V/2A Schottky Diode with Ultra-Low VF High Efficiency AEC-Q101 Qualified MSL1 Halogen-Free SMAFL Package Superior Thermal Performance for Automotive/Industrial Applications

NSR0320MW2T1G 30V/2A Schottky Diode with Ultra-Low VF High Efficiency AEC-Q101 Qualified MSL1 Halogen-Free SMAFL Package Superior Thermal Performance for Automotive/Industrial Applications

Features

• Low Forward Voltage − 0.24 Volts (Typ) @ IF = 10 mAdc

• High Current Capability

• ESD Rating:

  ♦ Human Body Model: CLASS 3B

  ♦ Machine Model: C

• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Description

High Efficiency and Low Power Consumption: Features an ultra-low forward voltage drop (VF), significantly reducing power loss and improving overall system efficiency, especially in high-frequency switching applications.

High Reliability Certification: AEC-Q101 qualified, ensuring compliance with strict automotive electronic quality and reliability standards.

Excellent Thermal Performance: Low reverse leakage current and outstanding thermal characteristics ensure stable operation in high-temperature environments.

Eco-Friendly and High-Reliability Design: Halogen-free and compliant with Moisture Sensitivity Level 1 (MSL1), meaning no moisture-proof packaging is required at room temperature, simplifying storage and assembly.

Compact Design: The small footprint of the SMAFL package helps save valuable PCB space, making it ideal for space-constrained portable and compact devices.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
