| 정격 전압 AC IEC: | 690V | 암페어 레이팅: | 125 A |
|---|---|---|---|
| ROHS 준수: | 예 | 제품 폭: | 40 mm |
| 제품 길이: | 135 mm | 제품 높이: | 64 밀리미터 |
| 강조하다: | IGBT module 250A high current,1200V IGBT power module,IGBT module for industrial drives |
||
NH1GG69V250P IGBT Module 250A High Current 1200V Voltage Low Vce(sat) High Efficiency Robust Isolation 175°C Rating Compact Design for Industrial Drives & UPS Systems
Features
Dimensions according to DIN 43 620 parts 1 to 4
Non-isolated gripping lugs
Double indicator
0% cadmium
Applications
general purpose cable and line protection
Description
Type "gG" NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection.They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short-circuit currents.
INFORMATION
| Item number | W233262 |

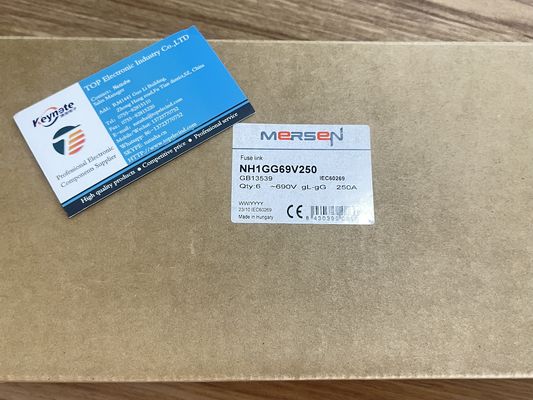

| Catalogue No | NH1GG69V250 |
| Description | DIN NH Standard fuse-link gG Size NH1 690VAC 400VDC 250A live tags Double indicator Body width 40 mm |
| EAN/UPC Code | 8430399026114 |
| Rated voltage AC IEC | 690 V |
| Rated voltage DC IEC | 400 V |
| Ampere Rating | 250 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | gG |
| Fuse Size | NH1 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 80 kA |
| Design Details | live tags |
| Indication System | Yes |
| Indication System Type | Double indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Plain Blades |
| Product Width | 40 mm |
| Product Length | 135 mm |
| Product Height | 64 mm |
| Sell Pack Quantity | 3 EA |
| Sell Pack Weight | 1.26 kg |
| Sell Pack Width | 125 mm |
| Sell Pack Length | 139 mm |
| Sell Pack Height | 70 mm |
| Product group | Low Voltage IEC Fuses |
| Product Weight | 0.42 kg |
| Body/Insulating Material | Ceramic |
| Power Dissipation at Rated Current Value | 20 W |
Drawing
