제품 상세 정보:
결제 및 배송 조건:
|
| 기능: | 승압, 강압 | 출력 구성: | 긍정적이거나 부정적입니다 |
|---|---|---|---|
| 토폴로지: | 상승, 뛰어오릅니다 | 출력 유형: | 조정 가능 |
| 출력의 수: | 1 | ||
| 강조하다: | Low Temp Drift Shunt Regulator,Low Output Noise Shunt Regulator,AZ431AN-ATRE1 Adjustable Shunt Regulator |
||

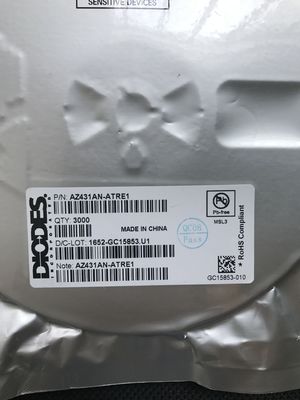

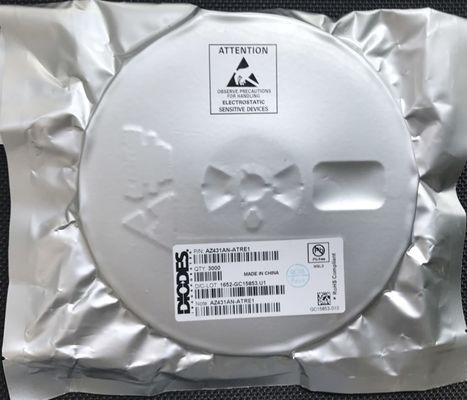

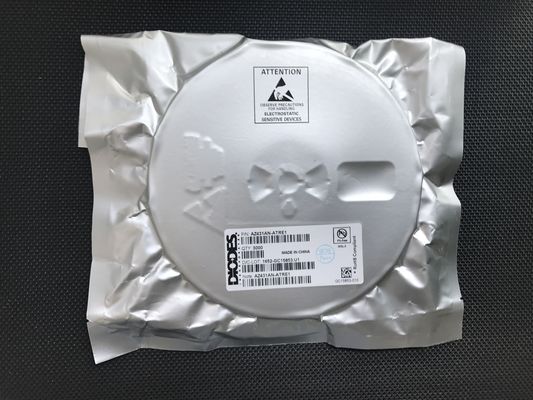

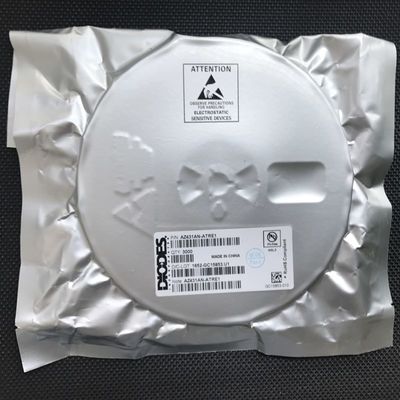

AZ431AN-ATRE1
The AZ431-A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of AZ431-A can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The AZ431-A precision reference is offered in two voltage tolerance: 0.4% and 0.8%. This IC is available in 3 packages: TO92 (Bulk or Ammo Packing), SOT23 and SOT89.
|
Category
|
|
|
|
Manufacturer
|
Diodes Incorporated
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR
Cut Tape (CT
Digi-Reel
|
|
|
Part Status
|
Active
|
|
|
Reference Type
|
Shunt
|
|
|
Output Type
|
Adjustable
|
|
|
Voltage - Output (Min/Fixed)
|
2.5V
|
|
|
Voltage - Output (Max)
|
36 V
|
|
|
Current - Output
|
100 mA
|
|
|
Tolerance
|
±0.4%
|
|
|
Temperature Coefficient
|
20ppm/°C Typical
|
|
|
Noise - 0.1Hz to 10Hz
|
-
|
|
|
Noise - 10Hz to 10kHz
|
-
|
|
|
Voltage - Input
|
-
|
|
|
Current - Supply
|
-
|
|
|
Current - Cathode
|
1 mA
|
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

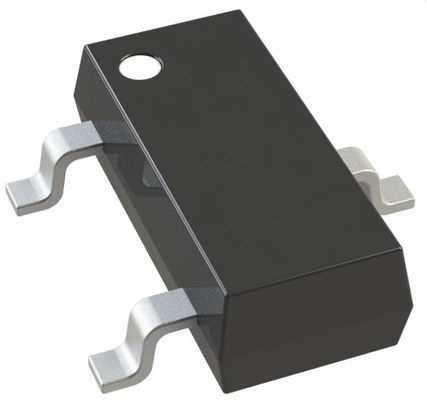

TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package
|
SOT-23-3
|
