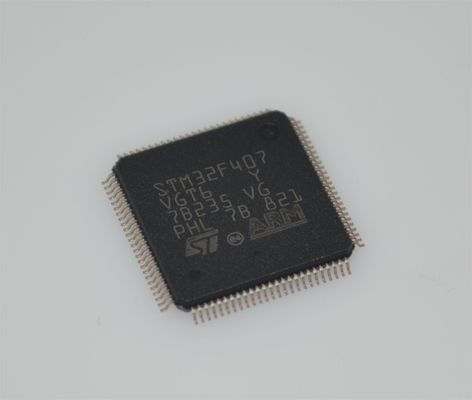

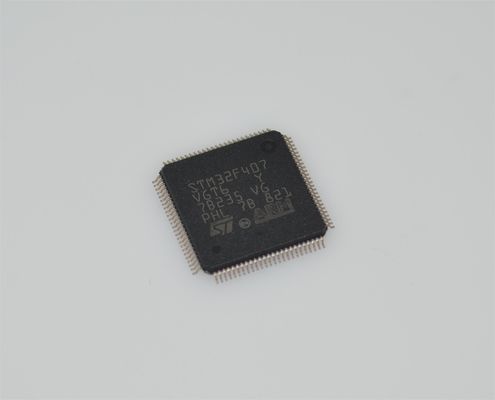

STM32F407VGT6 168MHz Cortex-M4 MCU 1MB Flash 192KB RAM 17 Timers LQFP-100 -40°C to +85°C

STM32F407VGT6 168MHz Cortex-M4 MCU 1MB Flash 192KB RAM 17 Timers LQFP-100 -40°C to +85°C

Features

• Ultra-low-power with FlexPowerControl

– 1.71 V to 3.6 V power supply

–-40 °C to 85/105/125 °C temperature range

– 200 nA in VBAT mode: supply for RTC and 32x32-bit backup registers

– 8 nA Shutdown mode (5 wakeup pins)

– 28 nA Standby mode (5 wakeup pins)

– 280 nA Standby mode with RTC

– 1.0 µA Stop 2 mode, 1.28 µA with RTC

– 84 µA/MHz run mode

– Batch acquisition mode (BAM)

– 4 µs wakeup from Stop mode

– Brown out reset (BOR)

– Interconnect matrix

• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait-state execution from Flash memory, frequency up to 80 MHz, MPU, 100DMIPS and DSP instructions

• Performance benchmark

– 1.25 DMIPS/MHz (Drystone 2.1)

– 273.55 CoreMark® (3.42 CoreMark/MHz @ 80 MHz)

• Energy benchmark

– 176.7 ULPBench® score

• Clock Sources

– 4 to 48 MHz crystal oscillator

– 32 kHz crystal oscillator for RTC (LSE)

– Internal 16 MHz factory-trimmed RC (±1%)

– Internal low-power 32 kHz RC (±5%)

– Internal multispeed 100 kHz to 48 MHz oscillator, auto-trimmed by LSE (better than ±0.25 % accuracy)

– Internal 48 MHz with clock recovery

– 2 PLLs for system clock, audio, ADC

• Up to 83 fast I/Os, most 5 V-tolerant WLCSP49

• RTC with HW calendar, alarms and calibration

• Up to 21 capacitive sensing channels: support touchkey, linear and rotary touch sensors

• 11x timers: 1x 16-bit advanced motor-control, 1x 32-bit and 2x 16-bit general purpose, 2x 16 bit basic, 2x low-power 16-bit timers (available in Stop mode), 2x watchdogs, SysTick timer

• Memories

– Up to 256 KB single bank Flash, proprietary code readout protection

– 64 KB of SRAM including 16 KB with hardware parity check

– Quad SPI memory interface

• Rich analog peripherals (independent supply)

– 1x 12-bit ADC 5 Msps, up to 16-bit with hardware oversampling, 200 µA/Msps

– 2x 12-bit DAC output channels, low-power sample and hold

– 1x operational amplifier with built-in PGA

– 2x ultra-low-power comparators

• 16x communication interfaces

– 1x SAI (serial audio interface)

– 3x I2C FM+(1 Mbit/s), SMBus/PMBus

– 4x USARTs (ISO 7816, LIN, IrDA, modem)

– 1x LPUART (Stop 2 wake-up)

– 3x SPIs (and 1x Quad SPI)

– CAN (2.0B Active) and SDMMC interface

– SWPMI single wire protocol master I/F

– IRTIM (Infrared interface)

• 14-channel DMA controller

• True random number generator

• CRC calculation unit, 96-bit unique ID

Description

The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision which supports all Arm single precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, 12 general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

• Up to three I2Cs

• Three SPIs, two I2Ss full duplex. To achieve audio class accuracy, the I2S peripherals can be clocked via a dedicated internal audio PLL or via an external clock to allow synchronization

• Four USARTs plus two UARTs

• A USB OTG full speed and a USB OTG high speed with full-speed capability (with the ULPI)

• Two CANs

• An SDIO/MMC interface

• Ethernet and the camera interface available on STM32F407xx devices only

New advanced peripherals include an SDIO, an enhanced flexible static memory control (FSMC) interface (for devices offered in packages of 100 pins and more), a camera interface for CMOS sensors. Refer to Table 2: STM32F405xx and STM32F407xx: features and peripheral counts for the list of peripherals available on each part number.

The STM32F405xx and STM32F407xx family operates in the –40 to +105 °C temperature range from a 1.8 to 3.6 V power supply. The supply voltage can drop to 1.7 V when the device operates in the 0 to 70 °C temperature range using an external power supply supervisor: refer to Section : Internal reset OFF. A comprehensive set of power-saving mode allows the design of low-power applications.

The STM32F405xx and STM32F407xx family offers devices in various packages ranging from 64 pins to 176 pins. The set of included peripherals changes with the device chosen.

These features make the STM32F405xx and STM32F407xx microcontroller family suitable for a wide range of applications:

• Motor drive and application control

• Medical equipment

• Industrial applications: PLC, inverters, circuit breakers

• Printers, and scanners

• Alarm systems, video intercom, and HVAC

• Home audio appliances

INFORMATION

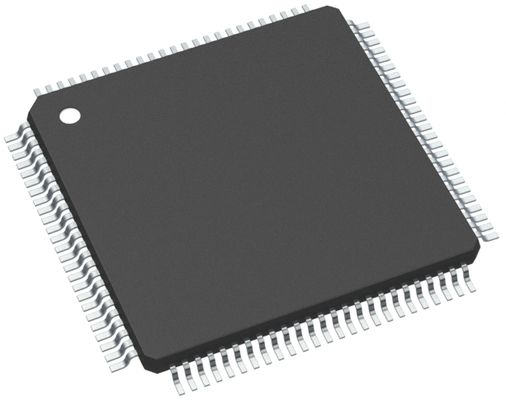

Drawing
