| Frequency Stability: | ±50ppm | Frequency Tolerance: | ±30ppm |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 85°C | Load Capacitance: | 18pF |
| Package / Case: | HC-49/US | Name: | Passive Electronic Components |
| 강조하다: | 4.5-60V Buck Converter,EN63A0QI Buck Converter,60V 3A Buck Converter |
||

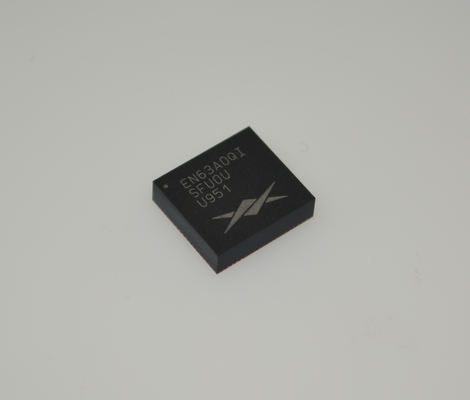

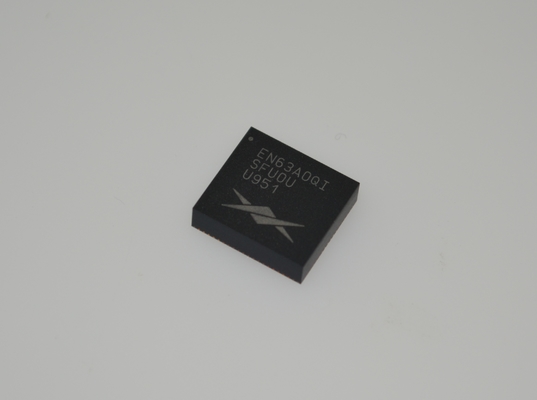

EN63A0QI 60V 3A Synchronous Buck Converter 4.5-60V Input 95% Efficiency QFN-16 -40°C to +125°C AEC-Q100
FEATURES
• High Efficiency (Up to 96%)
• Excellent Ripple and EMI Performance
• Up to 12A Continuous Operating Current
• Input Voltage Range (2.5V to 6.6V)
• Frequency Synchronization (Clock or Primary)
• 1.5% VOUT Accuracy (Over Load and Temperature)
• Optimized Total Solution Size (225mm2)
• Precision Enable Threshold for Sequencing
• Programmable Soft-Start
• Master/Slave Configuration for Parallel Operation
• Thermal Shutdown, Over-Current, Short Circuit, and Under-Voltage Protection
• RoHS Compliant, MSL Level 3, 260°C Reflow
APPLICATIONS
• Point of Load Regulation for Low-Power, Multi-Core and Communication Processors, DSPs, FPGAs and Distributed Power Architectures
• Blade Servers, RAID Storage and LAN/SAN Adapter Cards, Wireless Base Stations, Industrial Automation, Test and Measurement, Embedded Computing, and Printers
• Beat Frequency/Noise Sensitive Applications
DESCRIPTION

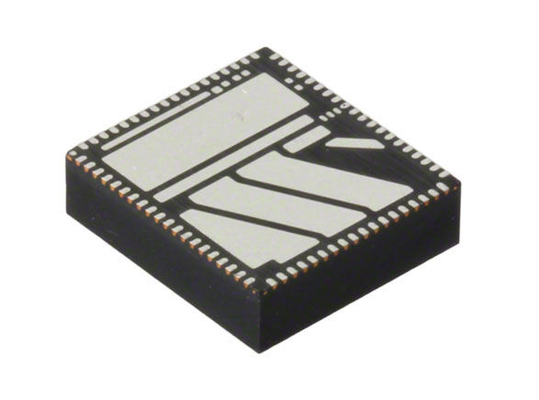

The EN63A0QI is an Intel® Enpirion® Power System on a Chip (PowerSoC) DC-DC converter. It integrates the inductor, MOSFET switches, small-signal circuits and compensation in an advanced 10mm x 11mm x 3mm 76-pin QFN package. It offers high efficiency, excellent line and load regulation over temperature and up to the full 12A load range.
The EN63A0QI is specifically designed to meet the precise voltage and fast transient requirements of present and future high-performance, low-power processor, DSP, FPGA, memory boards and system level applications in distributed power architectures. The device’s advanced circuit techniques, ultra-high switching frequency, and proprietary integrated inductor technology deliver high-quality, ultra compact, non-isolated DC-DC conversion.
Intel Enpirion Power Solutions significantly help in system design and productivity by offering greatly simplified board design, layout and manufacturing requirements. In addition, a reduction in the number of components required for the complete power solution helps to enable an overall system cost saving.
All Enpirion products are RoHS compliant and lead free manufacturing environment compatible.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status
|
Obsolete
|
|
|
Type
|
Non-Isolated PoL Module
|
|
|
Number of Outputs
|
1
|
|
|
Voltage - Input (Min)
|
2.5V
|
|
|
Voltage - Input (Max)
|
6.6V
|
|
|
Voltage - Output 1
|
|
|
|
Voltage - Output 2
|
-
|
|
|
Voltage - Output 3
|
-
|
|
|
Current - Output (Max)
|
12A
|
|
|
Applications
|
ITE (Commercial)
|
|
|
Features
|
Remote On/Off, OCP, OTP, SCP, UVLO
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Efficiency
|
96%
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
76-PowerBFQFN Module
|
|
|
Size / Dimension
|
0.43" L x 0.39" W x 0.12" H (11.0mm x 10.0mm x 3.0mm)
|
|
|
Supplier Device Package
|
76-QFN (11x10)
|
|
|
Control Features
|
Enable, Active High
|
|
|
Base Product Number
|
