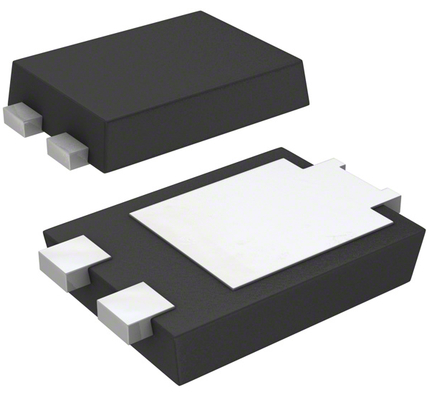

PDS760-13 760W High Power Density 12V/63A Output 93% Peak Efficiency Active PFC Compact 1U Size Full Protection (OVP/OCP/SCP) -40°C to +70°C Operation Ideal for Industrial & Telecom Systems
Features
• Guard Ring Die Construction for Transient Protection
• Low Power Loss, High Efficiency
• Low Reverse Leakage Current
• For Use in High-Frequency Inverters, Free Wheeling, and Polarity Protection Applications
• High Forward Surge Current Capability
• EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
• Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
Mechanical Data
• Package: PowerDI®5
• Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
• Polarity: See Diagram
• Weight: 0.096 grams (Approximate)
Description
The PDs760-13 is a 760W high-power-density AC/Dc power module designed with advancedpower technology, specifically built for demanding industrial environments and telecominfrastructure. With a compact 1U form factor delivering 760W continuous output, it perfectlybalances space utilization and power requirements, making it an ideal choice for rack-mountedequipment and distributed power systems.
1.Qutstanding Power Performance
760W continuous output power (800w peak)
Stable 12V/63A high-current output for heavy-load applicationsActive PFC design with power factor >0.99
2.Industry-Leading Efficiency
Up to 93% conversion efficiency, significantly reducing energy consumptionComplies with the latest energy efficiency standards (<1W standby power)
3.Military-Grade Reliability
Wide operating temperature range (-40'C to +70°C)Capable of operating at 3000m altitude
50,000 hours MTBF (at 25°C)
.Comprehensive Protection Features
Over-voltage (OVP), over-current (OCP), and short-circuit (SCP) protectionOver-temperature protection (OTP) and surge protectionAuto-recovery function for fault conditions
5. Flexible Intelligent Control
PMBus communication interface for remote monitoringProgrammable output voltage (+10% adjustment range)Supports parallel current-sharing operation for power expansion
Applications
Industrial automation control systems
Telecom base stations and network equipment
Servers and data centers
Medical imaging equipment
Test and measurement instruments
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
|
|
|
Voltage - DC Reverse (Vr) (Max)
|
60 V
|
|
|
Current - Average Rectified (Io)
|
7A
|
|
|
Voltage - Forward (Vf) (Max) @ If
|
620 mV @ 7 A
|
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Current - Reverse Leakage @ Vr
|
200 µA @ 60 V
|
|
|
Capacitance @ Vr, F
|
-
|
|
|
Mounting Type
|
|
|
|
Package / Case
|
|
|
|
Supplier Device Package
|
PowerDI™ 5
|
|
|
Operating Temperature - Junction
|
-65°C ~ 150°C
|
|
|
Base Product Number
|
Drawing
