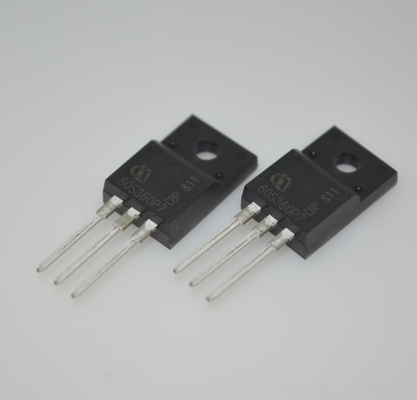

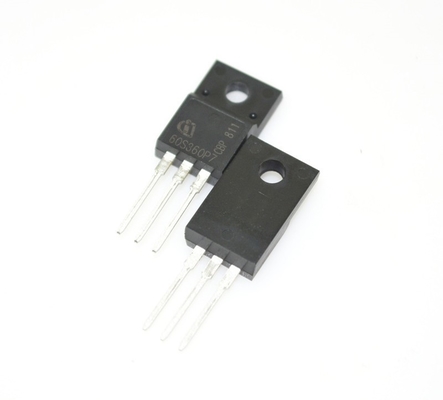

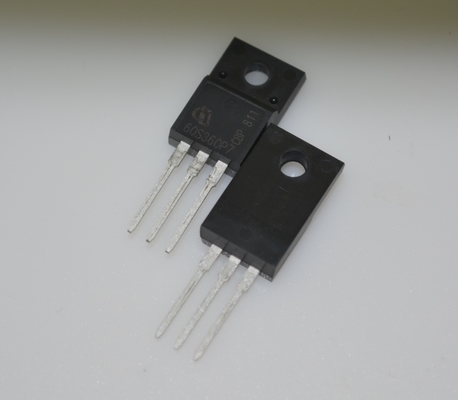

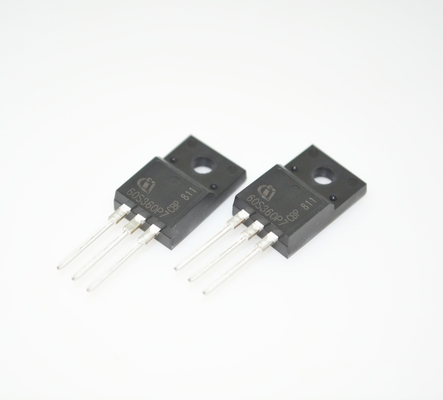

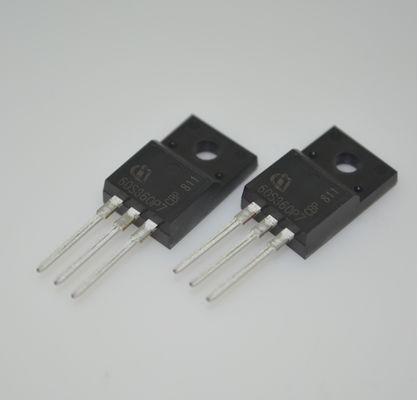

IPA60R360P7SXKSA1 600V CoolMOS™ 360mΩ RDS(on) 11A Current Ultra-Low Switching Losses High Efficiency Robust ESD Protection TO-220 Package for SMPS & Industrial Apps
Features
•Suitableforhardandsoftswitching(PFCandLLC)duetoanoutstanding commutationruggedness
•Significantreductionofswitchingandconductionlosses
•ExcellentESDrobustness>2kV(HBM)forallproducts
•BetterRDS(on)/packageproductscomparedtocompetitionenabledbya lowRDS(on)*A(below1Ohm*mm²)
Benefits
•Easeofuseandfastdesign-inthroughlowringingtendencyandusage acrossPFCandPWMstages
•Simplifiedthermalmanagementduetolowswitchingandconduction losses
•Increasedpowerdensitysolutionsenabledbyusingproductswith smallerfootprintandhighermanufacturingqualitydueto>2kVESD protection •Suitableforawidevarietyofapplicationsandpowerranges
Potentialapplications
PFCstages,hardswitchingPWMstagesandresonantswitchingstages fore.g. PCSilverbox,Adapter,LCD&PDPTV,Lighting,Server,Telecom andUPS.
Productvalidation
QualifiedaccordingtoJEDECStandard
MOSFET
600V CoolMOSª P7 Power Device
TheCoolMOS™7thgenerationplatformisarevolutionarytechnologyfor highvoltagepowerMOSFETs,designedaccordingtothesuperjunction (SJ)principleandpioneeredbyInfineonTechnologies.The600V CoolMOS™P7seriesisthesuccessortotheCoolMOS™P6series.It combinesthebenefitsofafastswitchingSJMOSFETwithexcellentease ofuse,e.g.verylowringingtendency,outstandingrobustnessofbody diodeagainsthardcommutationandexcellentESDcapability. Furthermore,extremelylowswitchingandconductionlossesmake switchingapplicationsevenmoreefficient,morecompactandmuch cooler.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
600 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
360mOhm @ 2.7A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
4V @ 140µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
13 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
555 pF @ 400 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
22W (Tc)
|
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
PG-TO220-FP
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
Drawing
