정상은 중국에 있는 직업적인 전자 부품 분배자입니다.
우리는 PCB Bom를 위한 커뮤니케이션 단위, 안테나, PCB, PCBA 및 모든 성분에서 원스톱 해결책 서비스를, 제안합니다.
|
제품 상세 정보:
결제 및 배송 조건:
|
| Function: | Step-Up, Step-Down | Output Configuration: | Positive or Negative |
|---|---|---|---|
| Topology: | Buck, Boost | Output Type: | Adjustable |
| Number of Outputs: | 1 |

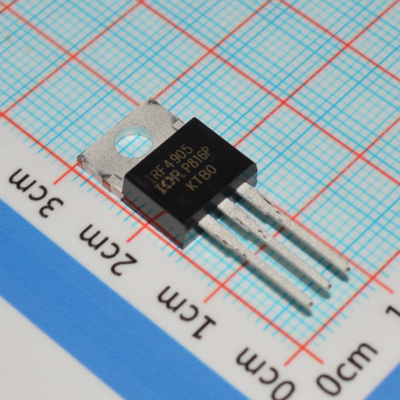

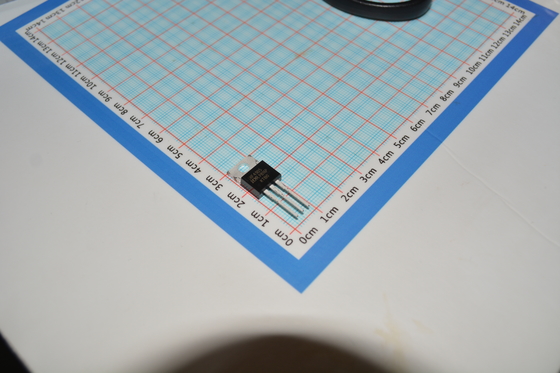

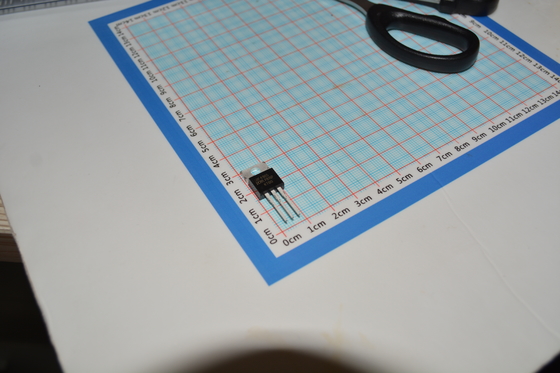

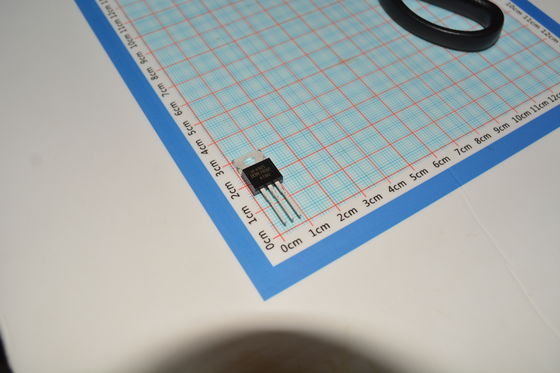

IRF4905LPBF P-Channel MOSFET 55V/-74A Ultra-Low 20mΩ RDS(on) Avalanche Rated TO-220AB Lead-Free High Efficiency Reliable for Power & Motor Control
Features
Advanced Process Technology
Ultra Low On-Resistance
150°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Some Parameters Are Differrent from IRF4905S
Lead-Free
Applications
DC motors (e.g., power tools, robotics, car window lifters)
Stepper and servo motor drives
Speed regulation in industrial automation
DC-DC converters, synchronous rectification
Load switches, reverse polarity protection
Battery management systems (BMS)
Relay/contactor replacements
12V/24V automotive systems (e.g., LED drivers, pump control)
Industrial power supplies and inverters
Reverse polarity protection (benefits from P-MOS characteristics)
Hot-swap power management
Solar power systems, UPS backup power
Description
Features of this design are a 150°C junction oper ating temperature, fast switching speed and im proved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in a wide variety of other applications.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
55 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
20mOhm @ 42A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
180 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
3500 pF @ 25 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
170W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
TO-262
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
Drawing
