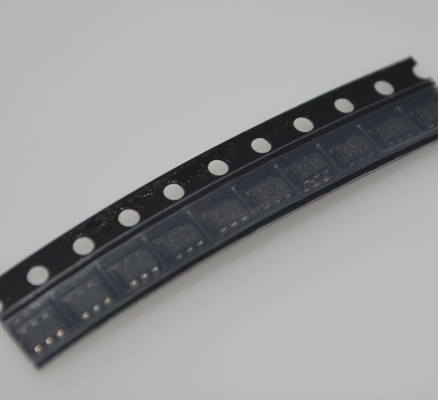

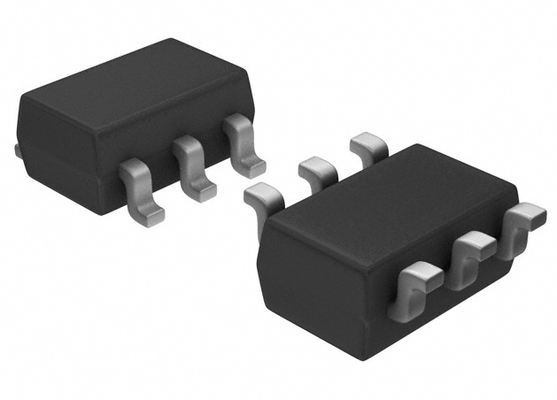

SN74LVC1G3157DBVR Low-Voltage Single 2:1 Mux/Demux with 5V Tolerant I/O 3.5ns Speed 10µA ICC 32mA Drive Tiny SOT-23-6 Wide 1.65-5.5V Range & High ESD Protection
Features
• ESD protection exceeds JESD 22
– 2000V Human Body Model (A114-A)
– 1000V Charged-Device Model (C101)
• 1.65V to 5.5V VCC operation
• Qualified for 125°C operation
• Specified break-before-make switching
• Rail-to-rail signal handling
• Operating frequency typically 340MHz at room temperature
• High speed, typically 0.5ns (VCC = 3V, CL = 50pF)
• Low ON-state resistance, typically approximately 6Ω (VCC = 4.5V)
• Latch-up performance exceeds 100mA Per JESD 78, class II
Applications
• Wearables and mobile devices
• Portable computing
• Internet of things (IoT)
• Audio signal routing
• Remote radio unit
• Portable medical equipment
• Surveillance
• Home automation
• I2C/SPI/UART bus multiplexing
• Wireless charging
Description
This single channel single-pole double-throw (SPDT) analog switch is designed for 1.65V to 5.5V VCC operation.
The SN74LVC1G3157 device handles both analog and digital signals. The SN74LVC1G3157 device allows signals with amplitudes of up to VCC (peak) to be transmitted in either direction.
Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Texas Instruments
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Switch Circuit
|
SPDT
|
|
|
Multiplexer/Demultiplexer Circuit
|
2:1
|
|
|
Number of Circuits
|
1
|
|
|
On-State Resistance (Max)
|
15Ohm
|
|
|
Channel-to-Channel Matching (ΔRon)
|
100mOhm
|
|
|
Voltage - Supply, Single (V+)
|
1.65V ~ 5.5V
|
|
|
Voltage - Supply, Dual (V±)
|
-
|
|
|
Switch Time (Ton, Toff) (Max)
|
5.7ns, 3.8ns
|
|
|
-3db Bandwidth
|
340MHz
|
|
|
Charge Injection
|
7pC
|
|
|
Channel Capacitance (CS(off), CD(off))
|
5.2pF
|
|
|
Current - Leakage (IS(off)) (Max)
|
1µA
|
|
|
Crosstalk
|
-54dB @ 10MHz
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
SOT-23-6
|
|
|
Supplier Device Package
|
SOT-23-6
|
|
|
Base Product Number
|
Drawing
