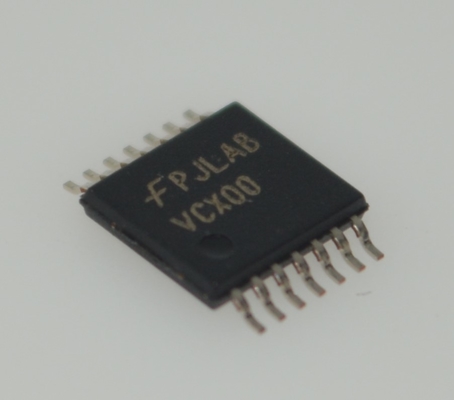

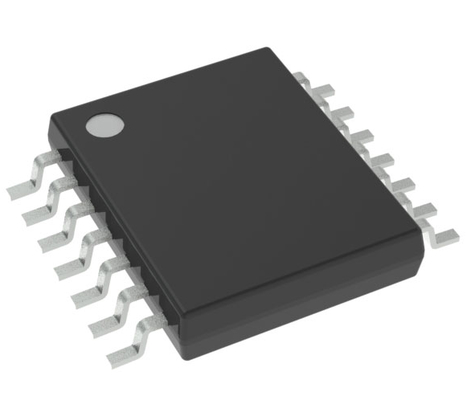

74VCX00MTCX 2.3-3.6V Quad 2-Input NAND Gate with 3.6V Tolerant Inputs/Outputs 100mA Balanced Output Drive Ultra-Low <2.5ns Delay in Tiny TSSOP-14 Package

74VCX00MTCX 2.3-3.6V Quad 2-Input NAND Gate with 3.6V Tolerant Inputs/Outputs 100mA Balanced Output Drive Ultra-Low <2.5ns Delay in Tiny TSSOP-14 Package

Features

1.2V to 3.6V Vcc supply operation

3.6V tolerant inputs and outputs

tPD

- 2.8ns max. for 3.0V to 3.6V Vcc

Power-off high impedance inputs and outputs

Static Drive (loH/loL)

- +24mA @ 3.0V Vcc

Uses proprietary noise/EMl reduction circuitry

Latchup performance exceeds JEDEC 78 conditions

ESD performance:

- Human body model>2000V

- Machine model>250V

Leadless DQFN package

Applications

1. High-Performance Digital Systems & Data Processing:

With ultra-low propagation delay (<2.5ns) and high output drive capability (100mA), it is perfect for:

• High-speed data routing and signal switching

• Address decoding and control logic around CPUs, FPGAs

• Data bus buffering and interface management

• Clock distribution and pulse shaping circuits

2. Portable & Battery-Powered Devices:
Its wide low-voltage operation range (2.3V to 3.6V) and 3.6V tolerant inputs make it ideal for interfacing with modern low-voltage microprocessors and memory in:

• Smartphones and tablets (motherboard logic)

• Laptops and ultrabooks

• Digital cameras and portable medical devices

• IoT devices and handheld instruments

3. Communication & Network Equipment:

• High-speed control logic in servers, routers, switches, and base stations

• Voltage level translation scenarios, as it seamlessly interfaces between different low-voltage logic levels (e.g., 3.3V ↔ 2.5V)

Description

The VCX00 contains four 2-input NAND gates. Thisproduct is designed for low voltage (1.2V to 3.6V)Vccapplications with l/0 compatibility up to 3.6V.

The VCX00 is fabricated with an advanced CMoStechnology to achieve high-speed operation while maintaining low CMoS power dissipation.

INFORMATION

Drawing
