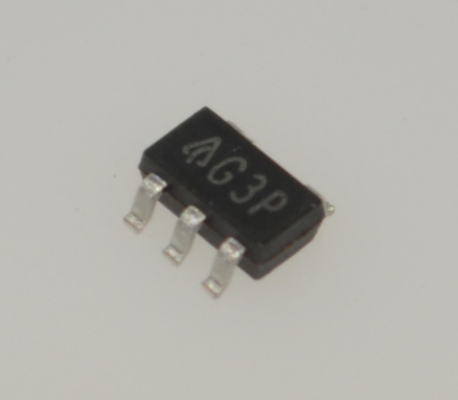

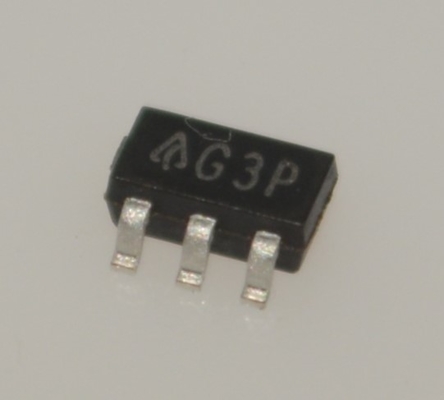

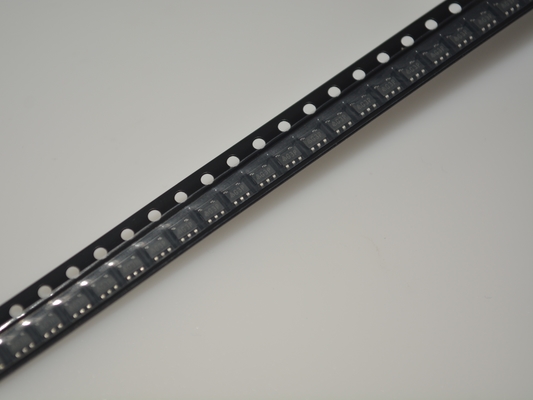

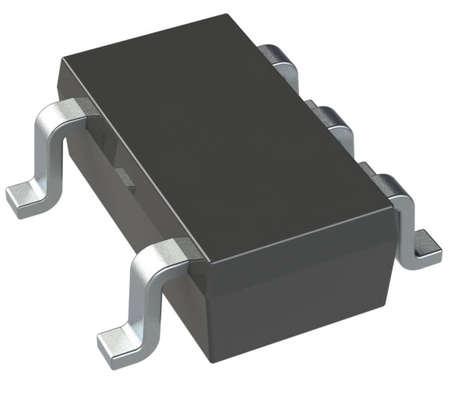

AP2112K-3.3TRG1 3.3V 600mA LDO Ultra-Low Dropout High PSRR Low Noise Enable Control Fast Transient Compact SOT-23 for Power-Sensitive Designs

AP2112K-3.3TRG1 3.3V 600mA LDO Ultra-Low Dropout High PSRR Low Noise Enable Control Fast Transient Compact SOT-23 for Power-Sensitive Designs

Features

 Output Voltage Accuracy: ±1.5%

 Output Current: 600mA (Min.)

 Foldback Short Current Protection: 50mA

 Enable Function to Turn ON/OFF VOUT

 Low Dropout Voltage (3.3V): 250mV (Typ.) @IOUT = 600mA

 Excellent Load Regulation: 0.2%/A (Typ.)

 Excellent Line Regulation: 0.02%/V (Typ.)

 Low Quiescent Current: 55µA (Typ.)

 Low Standby Current: 0.01µA (Typ.)

 Low Output Noise: 50µVRMS

 PSRR: 100Hz -65dB, 1kHz -65dB

 OTSD Protection

 Stable with 1.0µF Flexible Cap: Ceramic, Tantalum and Aluminum Electrolytic

 Operation Temperature Range: -40°C to +85°C

 ESD: MM 400V, HBM 4000V

Applications

 Laptop Computer

 LCD Monitor

 Portable DVD

Description

The AP2112 is CMOS process low dropout linear regulator with enable function, the regulator delivers a guaranteed 600mA (min.) continuous load current.

The AP2112 is available with a fixed output voltage of 1.2V, 1.8V, 2.5V, 2.6V, or 3.3V. The LDO has an output accuracy of ±1.5% and a very fast loop response providing excellent performance for dealing with line and load transients. The AP2112 includes an auto discharge function which connects the output to ground via 60 of resistance when the device is disabled.

The regulator features low power consumption, and provides SOT25, SOT89-5, and SO-8 packages. Previously SOT-23-5, SOT-89-5 and SOIC-8 packages were respectively identified as SOT23-5, SOT89-5 and SO-8 but have been renamed to match the latest Diodes Incorporated‘s nomenclature.

INFORMATION

Drawing
