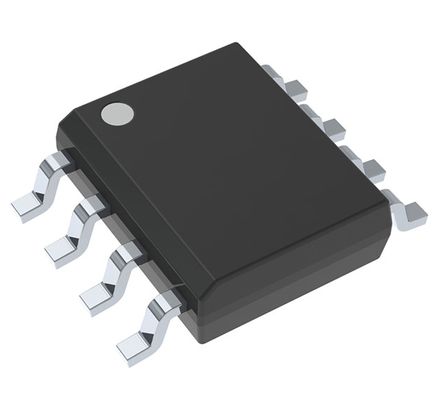

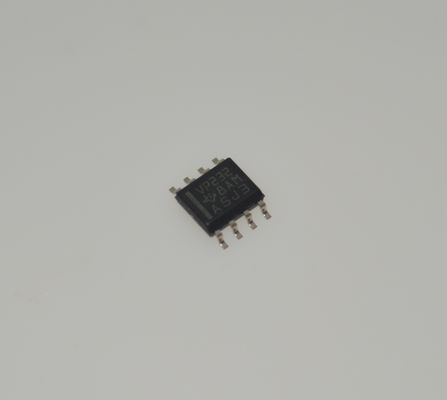

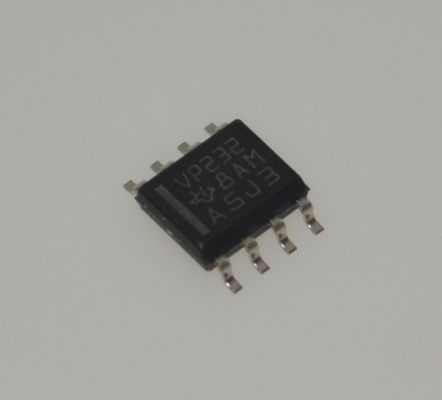

SN65HVD232DR 3.3V CAN Transceiver with High Speed Low EMI Fault Protection Wide Temp Range Low Power RS-485 Compatible and Robust ESD Performance

SN65HVD232DR 3.3V CAN Transceiver with High Speed Low EMI Fault Protection Wide Temp Range Low Power RS-485 Compatible and Robust ESD Performance

andnbsp;

Features

andbull; Operates with a single 3.3 V Supply

andbull; Compatible With ISO 11898-2 Standard

andbull; LowPower Replacement for the PCA82C250 Footprint

andbull; BusPin ESD Protection Exceeds andplusmn;16 kV HBM

andbull; High Input Impedance Allows for Up to 120 Nodes on a Bus

andbull; Adjustable Driver Transition Times for Improved Emissions Performance

andnbsp; andndash; SN65HVD230 and SN65HVD231

andbull; SN65HVD230: Low Current Standby Mode

andnbsp; andndash; 370andmu;ATypical

andbull; SN65HVD231: Ultra Low Current Sleep Mode

andnbsp; andndash; 40nATypical

andbull; Designed for Data Rates(1) up to 1 Mbps

andbull; Thermal Shutdown Protection

andbull; OpenCircuit Fail-Safe Design

andbull; Glitch Free Power Up and Power Down Protection for Hot Plugging Applications

andnbsp;

Applications

andbull; Industrial Automation, Control, Sensors and Drive Systems

andbull; Motor and Robotic Control

andbull; Building and Climate Control (HVAC)

andbull; Telecom and Basestation Control and Status

andbull; CANBusStandards Such as CANopen, DeviceNet, and CAN Kingdom

andnbsp;

Description

The SN65HVD230, SN65HVD231, and SN65HVD232 controller area network (CAN) transceivers are compatible to the specifications of the ISO 11898-2 High Speed CAN Physical Layer standard (transceiver). These devices are designed for data rates up to 1 megabit per second (Mbps), and include many protection features providing device and CAN network robustness. The SN65HVD23x transceivers are designed for use with the Texas Instruments 3.3 V andmicro;Ps, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.

andnbsp;

INFORMATION

andnbsp;

Drawing
