제품 상세 정보:
결제 및 배송 조건:
|
| 기능: | 스텝 업, 스텝 다운 | 출력 구성: | 긍정적이거나 부정적인 |
|---|---|---|---|
| 토폴로지: | 벅, 부스트 | 출력 유형: | 조절할 수 있는 |
| 출력 수: | 1 | ||
| 강조하다: | TL072CDR JFET-input op amp,low-noise audio op amp,SOIC-8 precision op amp |
||

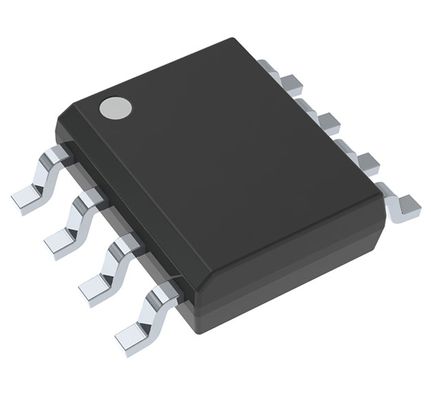

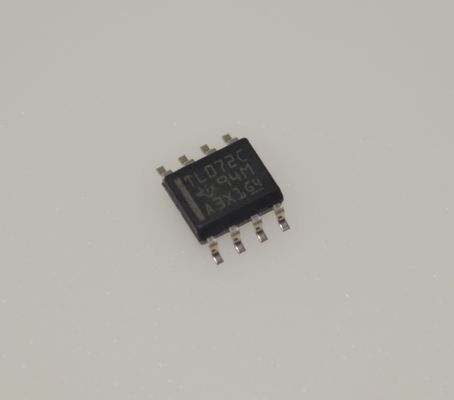

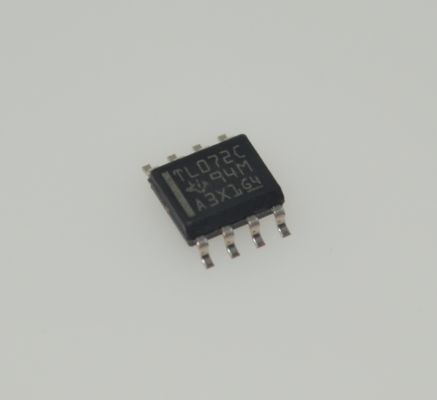

TL072CDR Low-Noise JFET-Input Op Amp with 3MHz Bandwidth 13V/andmicro;s Slew Rate andplusmn;18V Supply Low Input Bias High Input Impedance 0anddeg;C to 70anddeg;C Range and SOIC-8 Package for Audio andamp; Precision Applications
andnbsp;
Features
andbull; High slew rate: 20V/andmu;s (TL07xH, typ)
andbull; Low offset voltage: 1mV (TL07xH, typ)
andbull; Low offset voltage drift: 2andmu;V/anddeg;C
andbull; Low power consumption: 940andmu;A/ch (TL07xH, typ)
andbull; Wide common-mode and differential voltage rangesandndash; Common-mode input voltage range includes VCC+
andbull; Low input bias and offset currents
andbull; Low noise:andndash; Vn = 37nV/andradic; Hz (typ) at f = 1kHz
andbull; Output short-circuit protection
andbull; Low total harmonic distortion: 0.003% (typ)
andbull; Wide supply voltage:andndash; andplusmn;2.25V to andplusmn;20V, 4.5V to 40V
andnbsp;
Applications
andbull; Solar energy: string and central inverter
andbull; Motor drives: ac and servo drive control and power-stage modules
andbull; Single-phase online UPS
andbull; Three-phase UPS
andbull; Pro audio mixers
andbull; Battery test equipment
andnbsp;
Description
The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/andmu;s), and common-mode input to the positive supply.
andnbsp;
INFORMATION
|
Category
|
andnbsp;
|
|
|
Mfr
|
andnbsp;
|
|
|
Series
|
-
|
andnbsp;
|
|
Packaging
|
Tape andamp; Reel (TR)
Cut Tape (CT)
Digi-Reelandreg;
|
andnbsp;
andnbsp;
andnbsp;
|
|
Part Status
|
Active
|
andnbsp;
|
|
Amplifier Type
|
andnbsp;
|
|
|
Number of Circuits
|
2
|
andnbsp;
|
|
Output Type
|
-
|
andnbsp;
|
|
Slew Rate
|
13V/andmicro;s
|
andnbsp;
|
|
Gain Bandwidth Product
|
5.25 MHz
|
andnbsp;
|
|
Current - Input Bias
|
65 pA
|
andnbsp;
|
|
Voltage - Input Offset
|
3 mV
|
andnbsp;
|
|
Current - Supply
|
1.4mA (x2 Channels)
|
andnbsp;
|
|
Voltage - Supply Span (Min)
|
10 V
|
andnbsp;
|
|
Voltage - Supply Span (Max)
|
30 V
|
andnbsp;
|
|
Operating Temperature
|
0anddeg;C ~ 70anddeg;C (TA)
|
andnbsp;
|
|
Mounting Type
|
Surface Mount
|
andnbsp;
|
|
Package / Case
|
8-SOIC (0.154andquot;, 3.90mm Width)
|
andnbsp;
|
|
Supplier Device Package
|
8-SOIC
|
andnbsp;
|
|
Base Product Number
|
andnbsp;
Drawing
