| 기능: | 스텝 업, 스텝 다운 | 출력 구성: | 긍정적이거나 부정적인 |
|---|---|---|---|
| 토폴로지: | 벅, 부스트 | 출력 유형: | 조절할 수 있는 |
| 출력 수: | 1 | ||
| 강조하다: | High-Speed IGBT MOSFET Gate Drive Optocoupler,SO6 Package Optocoupler with UVLO Protection,5V to 30V Supply Gate Drive Optocoupler |
||

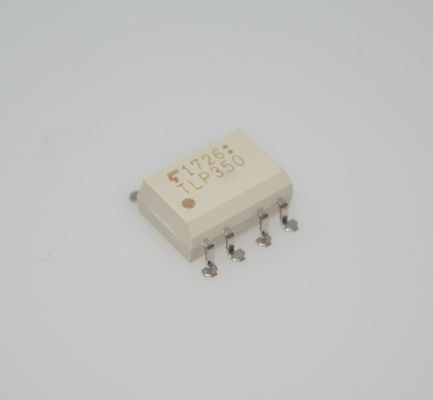

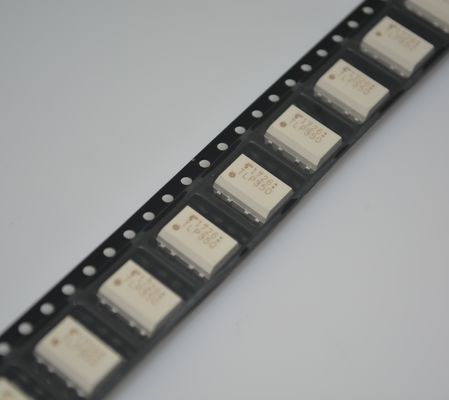

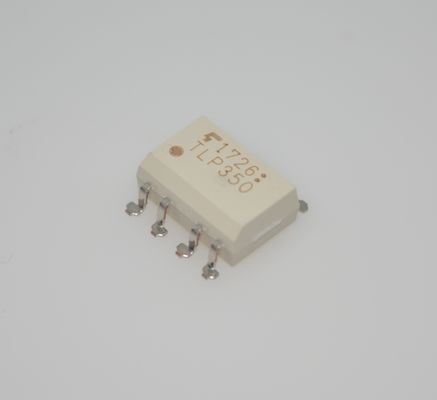

TLP350H(F) High-Speed 1.0A IGBT/MOSFET Gate Drive Optocoupler with 0.5andmicro;s Max Delay 50kV/andmicro;s CMR -40anddeg;C to 110anddeg;C Range 5V to 30V Supply SO6 Package and Under Voltage Lockout (UVLO) Protection
andnbsp;
Features
Buffer logic type (totem pole output)
Output peak current: andplusmn;2.5 A (max)
Operating temperature: -40 to 125℃
Supply current: 3 mA (max)
Supply voltage: 15 to 30 V
Threshold input current: 5 mA (max)
Propagation delay time: 500 ns (max)
Common-mode transient immunity: andplusmn;20 kV/andmicro;s (min)
Isolation voltage: 3750 Vrms (min)
andnbsp;
Applications
andbull; Industrial Inverters
andbull; Air Conditioner Inverters
andbull; MOSFET Gate Drivers
andbull; IGBT Gate Drivers
andbull; Induction Cooktop and Home Appliances
andnbsp;
Description
The TLP350H is a photocoupler in a DIP8 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125 .The TLP350H has an internal Faraday shield that provides a guaranteed Common-mode transient immunity of andplusmn;20 kV/andmicro;s. It has a totem-pole output that can both sink and source current.
The TLP350H is ideal for IGBT of small capacity to middle capacity and power MOSFET gate drive.
andnbsp;
INFORMATION
|
Category
|
andnbsp;
|
|
|
Mfr
|
andnbsp;
|
|
|
Series
|
-
|
andnbsp;
|
|
Packaging
|
Tube
|
andnbsp;
|
|
Part Status
|
Active
|
andnbsp;
|
|
Technology
|
Optical Coupling
|
andnbsp;
|
|
Number of Channels
|
1
|
andnbsp;
|
|
Voltage - Isolation
|
3750Vrms
|
andnbsp;
|
|
Common Mode Transient Immunity (Min)
|
20kV/andmicro;s
|
andnbsp;
|
|
Propagation Delay tpLH / tpHL (Max)
|
500ns, 500ns
|
andnbsp;
|
|
Pulse Width Distortion (Max)
|
350ns
|
andnbsp;
|
|
Rise / Fall Time (Typ)
|
15ns, 8ns
|
andnbsp;
|
|
Current - Output High, Low
|
3mA, 3mA
|
andnbsp;
|
|
Current - Peak Output
|
2.5A
|
andnbsp;
|
|
Voltage - Forward (Vf) (Typ)
|
1.55V
|
andnbsp;
|
|
Current - DC Forward (If) (Max)
|
20 mA
|
andnbsp;
|
|
Voltage - Output Supply
|
15V ~ 30V
|
andnbsp;
|
|
Operating Temperature
|
-40anddeg;C ~ 125anddeg;C
|
andnbsp;
|
|
Mounting Type
|
Through Hole
|
andnbsp;
|
|
Package / Case
|
8-DIP (0.300andquot;, 7.62mm)
|
andnbsp;
|
|
Supplier Device Package
|
8-DIP
|
andnbsp;
|
|
Base Product Number
|
andnbsp;
Drawing
Our advantage :phones, PDAand#39;s, notebook comput.ers
andnbsp;
be sure to meet your need for all kinds of components. ^_^
Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,
The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)
Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
