| 기능: | 스텝 업, 스텝 다운 | 출력 구성: | 긍정적이거나 부정적인 |
|---|---|---|---|
| 토폴로지: | 벅, 부스트 | 출력 유형: | 조절할 수 있는 |
| 출력 수: | 1 |

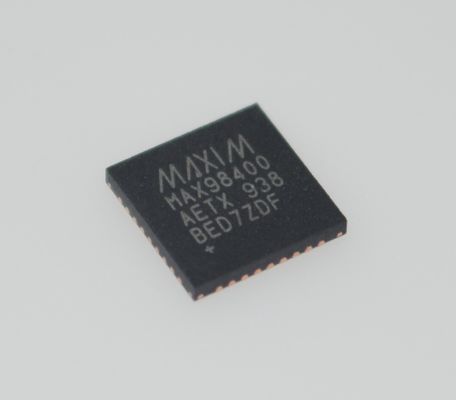

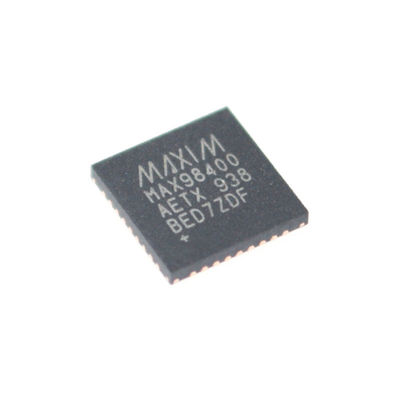

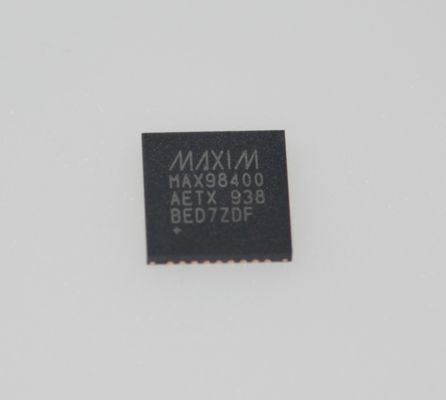

MAX98400A Class D Amp with 20W Output, 92% Efficiency, I2C Control, Integrated Boost, 8ms Startup, Full Protection, & 6.5μV Noise for Premium Portable Audio
Features
● Wide 8V to 28V Supply Voltage Range
● Single-Supply Operation
● Low EMI: Active Emissions Limiting
● Clipping Limiter
● Low Quiescent Current
● Thermal Foldback
● Thermal and Overcurrent Protection
Applications
● LCD/PDP Televisions
● LCD Monitors
● MP3 Docking Stations
● Notebook PCs
Description
The MAX98400A/MAX98400B Class D amplifiers provide high-performance, thermally efficient amplifier solutions. The MAX98400A delivers 2x20W into 8Ω loads or 1x40W into a 4Ω load. The MAX98400B delivers 2x12W into 8Ω loads.
An integrated limiting circuit prevents output clipping distortion, protects small speakers from transient voltages, and reduces power dissipation.
A thermal-foldback feature can be enabled to automatically reduce the output power at above a junction temperature of +120°C. Traditional thermal protection is also available in addition to robust overcurrent protection.
The ICs operate from a single 8V to 28V supply and provide a high 67dB PSRR, eliminating the need for a regulated power supply. They offer up to 90% efficiency from a 12V supply.
Filterless modulation allows the ICs to pass EN55022B EMI limits with 1m cables using only a low-cost ferrite bead and small-value capacitor on each output.
Both devices feature eight digitally controlled gain settings.
Comprehensive click-and-pop reduction circuitry minimizes noise coming into and out of shutdown.
The MAX98400A/MAX98400B are available in 36-pin and 24-pin TQFN packages, respectively, and are specified over the -40°C to +85°C temperature range.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Analog Devices Inc./Maxim Integrated
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Class D
|
|
|
Output Type
|
2-Channel (Stereo)
|
|
|
Max Output Power x Channels @ Load
|
20W x 2 @ 8Ohm
|
|
|
Voltage - Supply
|
8V ~ 28V
|
|
|
Features
|
Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Supplier Device Package
|
36-TQFN (6x6)
|
|
|
Package / Case
|
36-WFQFN Exposed Pad
|
|
|
Base Product Number
|
Drawing
Our advantage :phones, PDA's, notebook comput.ers
be sure to meet your need for all kinds of components. ^_^
Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,
The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)
Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
