| 기능: | 스텝 업, 스텝 다운 | 출력 구성: | 긍정적이거나 부정적인 |
|---|---|---|---|
| 토폴로지: | 벅, 부스트 | 출력 유형: | 조절할 수 있는 |
| 출력 수: | 1 |

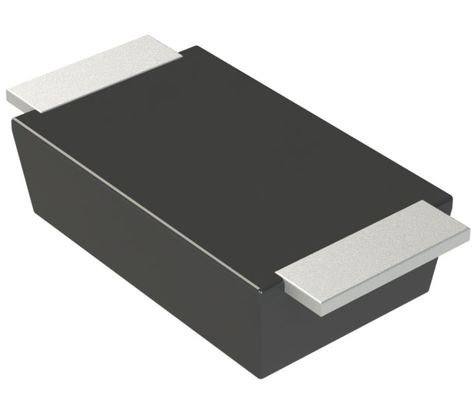

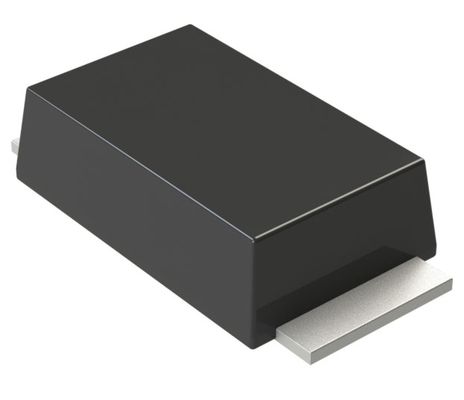

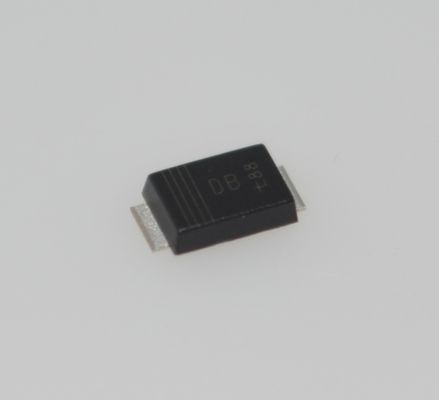

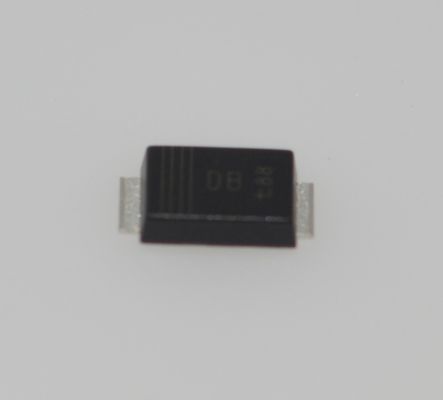

Ultra-Low Vf PMEG6030EVPX 60V 3A Schottky Barrier Rectifier AEC-Q101 Qualified High Efficiency <1µA Low IR Halogen-Free SOD128 Flat Plastic Package for Automotive & Industrial
Features
• Average forward current: IF(AV) ≤ 3 A
• Reverse voltage: VR ≤ 60 V
• Low forward voltage
• High power capability due to clip-bonding technology
• Small and flat lead SMD plastic package
• High temperature Tj ≤ 175 °C
• Suitable for both reflow and wave soldering
Applications
• Low voltage rectification
• High efficiency DC-to-DC conversion
• Switch mode power supply
• Reverse polarity protection
• Low power consumption application
Description
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
|
|
|
Voltage - DC Reverse (Vr) (Max)
|
60 V
|
|
|
Current - Average Rectified (Io)
|
3A
|
|
|
Voltage - Forward (Vf) (Max) @ If
|
475 mV @ 3 A
|
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Reverse Recovery Time (trr)
|
20 ns
|
|
|
Current - Reverse Leakage @ Vr
|
400 µA @ 60 V
|
|
|
Capacitance @ Vr, F
|
575pF @ 1V, 1MHz
|
|
|
Mounting Type
|
|
|
|
Package / Case
|
|
|
|
Supplier Device Package
|
SOD-128/CFP5
|
|
|
Operating Temperature - Junction
|
175°C (Max)
|
|
|
Base Product Number
|
Drawing
