제품 상세 정보:
결제 및 배송 조건:
|
| 기능: | 스텝 업, 스텝 다운 | 출력 구성: | 긍정적이거나 부정적인 |
|---|---|---|---|
| 토폴로지: | 벅, 부스트 | 출력 유형: | 조절할 수 있는 |
| 출력 수: | 1 |

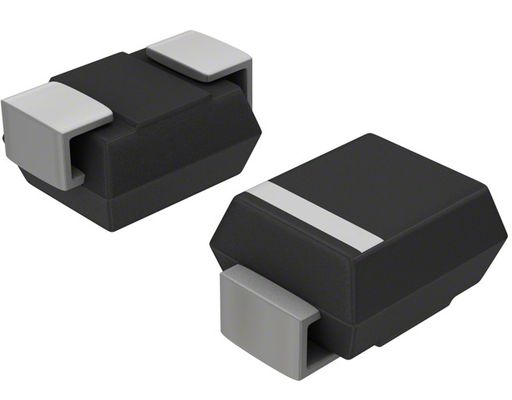

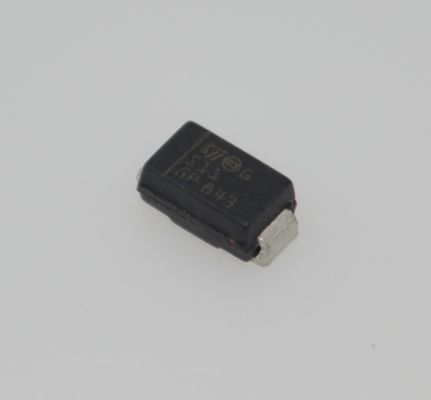

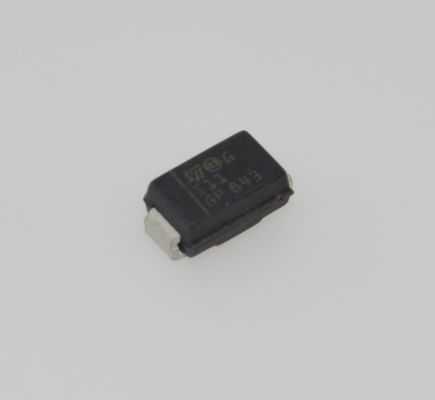

STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 to 175°C TJ SOD-123FL Package
Features
• Negligible switching losses
• High junction temperature capability
• Low leakage current
• Good trade off between leakage current and forward voltage drop
• Avalanche capability specified
• ECOPACK2 halogen-free component
Applications
1:Automotive Electronics
Explanation: As it is AEC-Q101 qualified, it is an ideal choice for automotive applications.
Specific Applications: DC-DC converters in Engine Control Units (ECUs), Body Control Modules (BCMs), lighting systems, infotainment systems, and low-voltage auxiliary power supplies in electric/hybrid vehicles.
2:Industrial Electronics
Explanation: Its wide junction temperature range allows it to adapt to harsh industrial environments.
Specific Applications: Power supplies for Programmable Logic Controllers (PLCs), sensors, motor drive control boards, and low-voltage power supplies in industrial automation equipment.
3:Consumer Electronics & Computing
Explanation: Its high efficiency and small package make it suitable for space-constrained devices that focus on energy efficiency.
Specific Applications: Power adapters for laptops, internal DC-DC power supplies in desktops, server power supplies, and power boards for TVs and gaming consoles.
4:Communication Equipment
Explanation: Its fast switching characteristic is crucial for efficient Switch-Mode Power Supplies (SMPS).
Specific Applications: Power units for network switches, routers, base stations, and other telecommunications infrastructure.
Description
Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.
Packaged in SMA, SMA Flat, SMA Flat Notch,or SMB, this diode is ideal for use in lighting and telecom power applications.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
|
|
|
Voltage - DC Reverse (Vr) (Max)
|
100 V
|
|
|
Current - Average Rectified (Io)
|
1A
|
|
|
Voltage - Forward (Vf) (Max) @ If
|
770 mV @ 1 A
|
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Current - Reverse Leakage @ Vr
|
4 µA @ 100 V
|
|
|
Capacitance @ Vr, F
|
-
|
|
|
Mounting Type
|
|
|
|
Package / Case
|
|
|
|
Supplier Device Package
|
DO-214AC (SMA)
|
|
|
Operating Temperature - Junction
|
175°C (Max)
|
|
|
Base Product Number
|
Drawing
