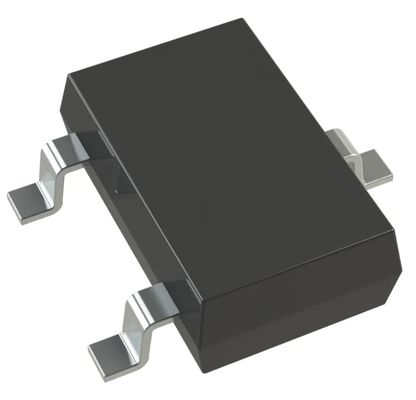

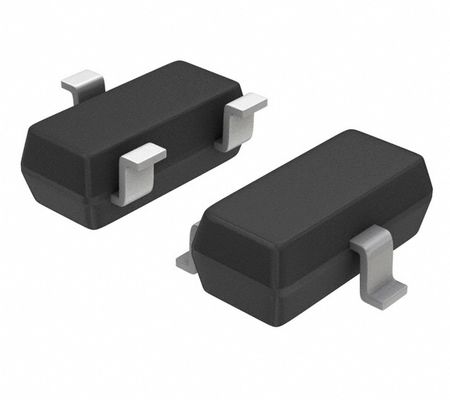

MMBT2907ALT1G PNP Bipolar Transistor 60V VCEO, 600mA Continuous Current 310mW Power Dissipation SOT-23 Package Low Saturation Voltage High Current Gain For General-Purpose Amplification & Switching
Features
1:Transistor Type: PNP Bipolar (BJT)
2:Voltage Rating: 60V V<sub>CEO</sub>
3:Current Rating: 600mA Continuous I<sub>C</sub>
4:Power Rating: 310mW Total Power Dissipation
5:Package: Miniature SOT-23-3 (SC-59)
6:Saturation Voltage: Low V<sub>CE(sat)</sub>
7:Current Gain: High h<sub>FE</sub>
8:Qualification: RoHS Compliant
Applications
1:Signal Amplification: Used in driver stages, audio pre-amplifiers, and other general-purpose analog amplification circuits.
2:Low-Side Switching: Ideal for controlling relays, motors, LEDs, and other loads where the transistor is placed between the load and ground.
3:nterface Circuits: Serves as a level shifter or buffer between microcontrollers and higher-voltage/current peripherals.
4:Power Management: Incorporated in linear regulators, constant-current sources, and other power control circuitry.
5:Consumer & Industrial Electronics: Commonly found in power supplies, motor drives, and various control modules across industries.
Description
The MMBT2907ALT1G is a general-purpose PNP bipolar junction transistor housed in a compact, surface-mount SOT-23-3 package. It is designed for a wide range of analog amplification and low-side switching applications. This transistor features a collector-emitter voltage of 60V and a continuous collector current of 600mA, providing a robust solution for managing moderate power levels. Its high current gain and low saturation voltage ensure efficient operation and minimal power loss in both switching and linear circuits. As a lead-free and RoHS compliant component, it is suitable for modern electronic designs.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|

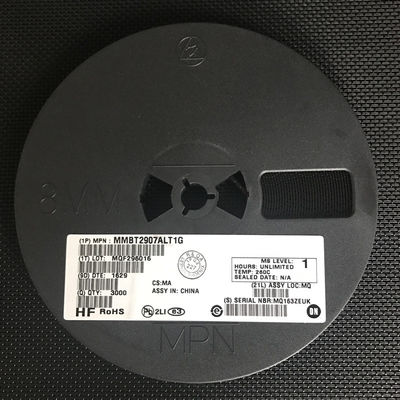

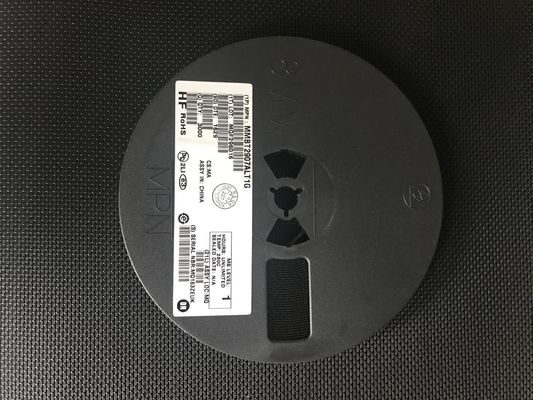

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Transistor Type
|
|
|
|
Current - Collector (Ic) (Max)
|
600 mA
|
|
|
Voltage - Collector Emitter Breakdown (Max)
|
60 V
|
|
|
Vce Saturation (Max) @ Ib, Ic
|
1.6V @ 50mA, 500mA
|
|
|
Current - Collector Cutoff (Max)
|
10nA (ICBO)
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 150mA, 10V
|
|
|
Power - Max
|
300 mW
|
|
|
Frequency - Transition
|
200MHz
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package
|
SOT-23-3 (TO-236)
|
|
|
Base Product Number
|
Drawing
